How to Make a Three Legged PVC Light Stand

Need some light stands? Can't afford a big outlay? Make your own using PVC pipe pieces––it's as simple as a child's puzzle!

Method 1
Method 1 of 2:
Making the Light

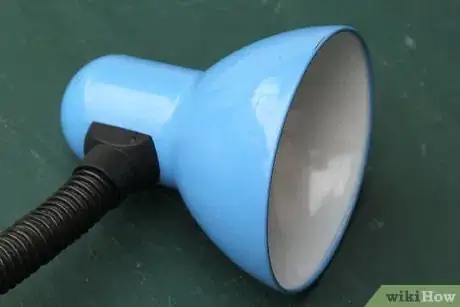

  1. Image titled Make a Three Legged PVC Light Stand Step 1
    1
    Unscrew the clamp from the clamp light. This will help it to fit inside the 1 inch/2.5cm PVC T-piece.

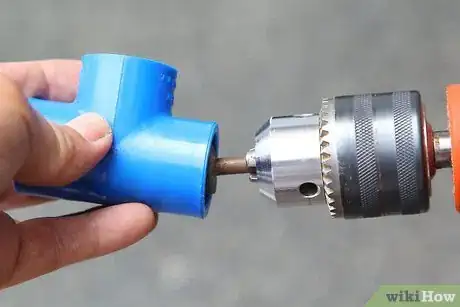

  2. Image titled Make a Three Legged PVC Light Stand Step 2
    2
    Use the Dremel tool to sand the inside of the 1 inch/2.5cm PVC T-piece. You are going to be putting the 'base' of the clamp light inside of it. If you take off too much, use some electrical tape to improve the fit.

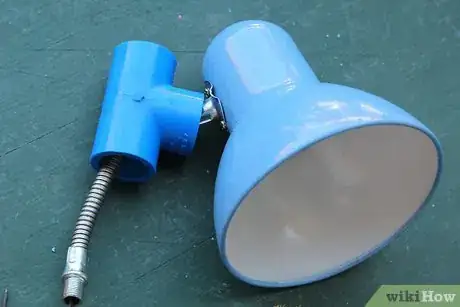

  3. Image titled Make a Three Legged PVC Light Stand Step 3
    3
    Insert the bushing into the side of the T-piece that you just put on the clamp light.

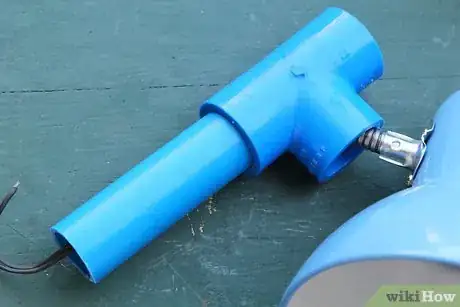

  4. Image titled Make a Three Legged PVC Light Stand Step 4
    4
    Push the 3 inch/7.5cm piece into the bushing.
    • Put on a 3/4 inch/2cm T-piece onto the bushing.

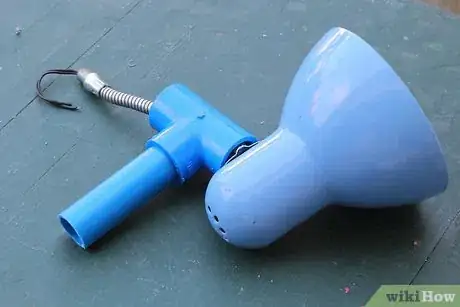

  5. Image titled Make a Three Legged PVC Light Stand Step 5
    5
    Put the light aside for now.

Method 2
Method 2 of 2:
Making the Light Stand

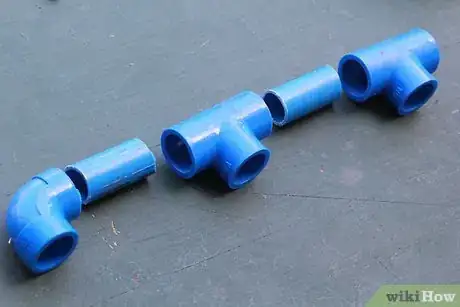

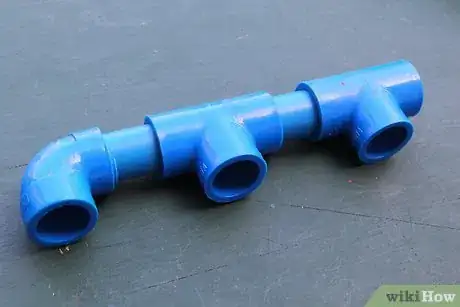

  1. Image titled Make a Three Legged PVC Light Stand Step 6
    1
    Make the base. Using two of the two inch/2.5cm pieces, 2 T-pieces, and a 90 degree elbow, put them together, like so:

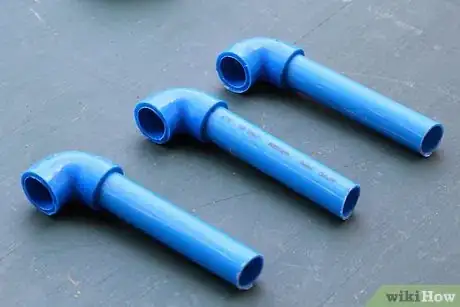

  2. Image titled Make a Three Legged PVC Light Stand Step 7
    2
    Attach three of the 5 inch/12.5cm pieces to the 45 degree elbows.

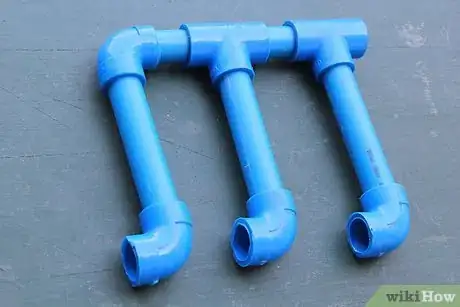

  3. Image titled Make a Three Legged PVC Light Stand Step 8
    3
    Attach those pieces to the base that you have already created. You are making the set of legs.

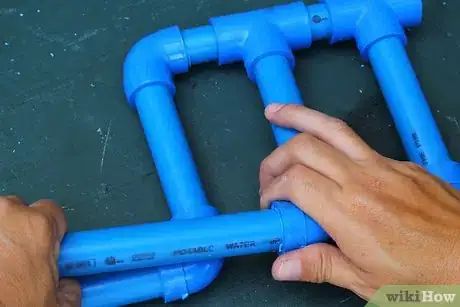

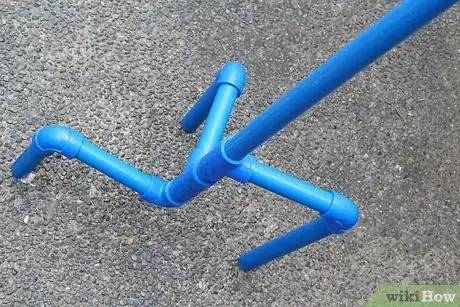

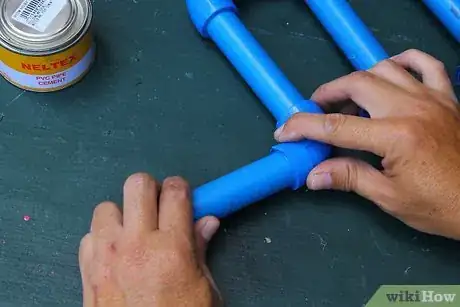

  4. Image titled Make a Three Legged PVC Light Stand Step 9
    4
    Attach the leftover 5 inch/12.5cm piece to the base of the stand. That is where you will find the elbow.

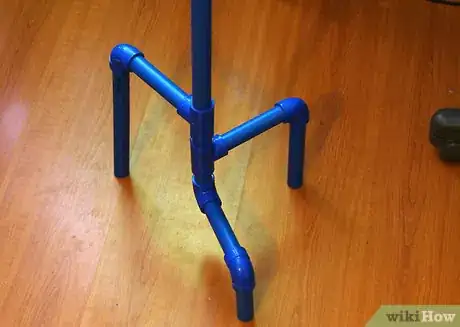

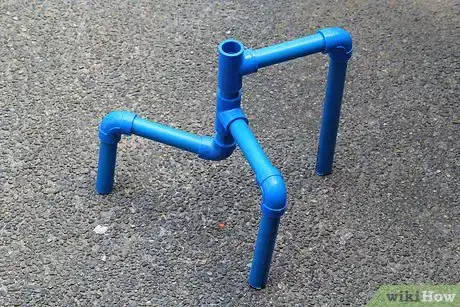

  5. Image titled Make a Three Legged PVC Light Stand Step 10
    5
    Your finished tripod.

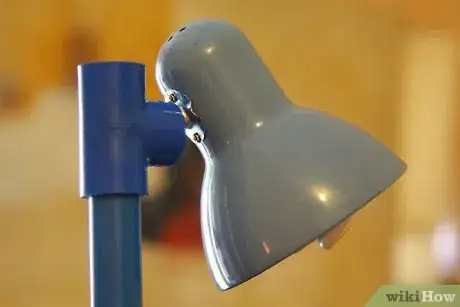

  6. Image titled Make a Three Legged PVC Light Stand Step 11
    6
    Attach the altered clamp light to the top of your light stand. It's now ready to use.

Things You'll Need

  • Clamp light
  • Dremel (or a similar tool)
  • PVC pipes as follows:
    • 3 - 3/4 inch/2cm T-pieces
    • 3 - 3/4 inch/2cm 45 degree elbows
    • 1 - 3/4 inch/2cm 90 degree elbow
    • 1 - 1 inch/2.5cm T
    • 1 - 1 inch to 3/4/2cm inch bushing
    • 1 - 10 foot/3 meter 3/4/2cm inch PVC pipe, cut into the following:
      • 2 - 2 inch//5cm pieces
      • 1 - 3 inch/7.5cm piece
      • 4 - 5 inch/12.5cm pieces
      • 1 - 9 3/4 inch/24.5cm piece
      • 1 - 15 3/4 inch/40cm piece
      • 1 - 5 foot/1.5 meter piece
