How to Fix a Leaky Sunroof

Co-authored by wikiHow Staff

Last Updated: July 31, 2020 References

Whether it's dripping or gushing water, a sunroof leak can create a mess and damage your car's interior. While you may assume that the rubber seal on your sunroof is damaged and needs repair, oftentimes the culprit isn't the seal at all. Instead, check the tiny holes at the edges of the sunroof seal for clogs.

Method 1

Method 1 of 3:
Cleaning Drain Tubes with Air

1

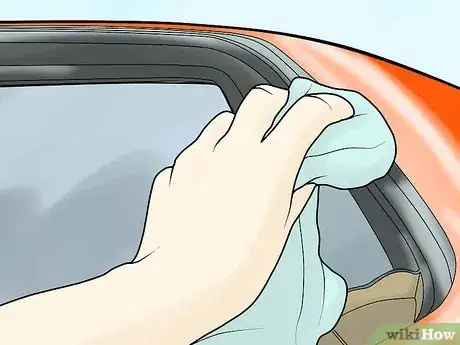

Clean the sunroof trough, located just inside the rubber seal. It is designed to catch water that gets through the sunroof. Wipe it with a cloth to remove any visible debris on the seals and edges of the sunroof.^{[1]
X
Research source}
2

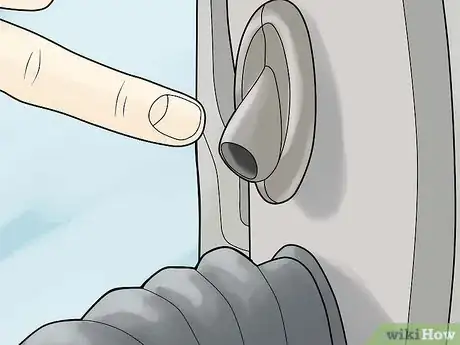

Locate the sunroof drain tubes. These are very small holes, usually at the corners of the sunroof just under the seal.

Advertisement
3

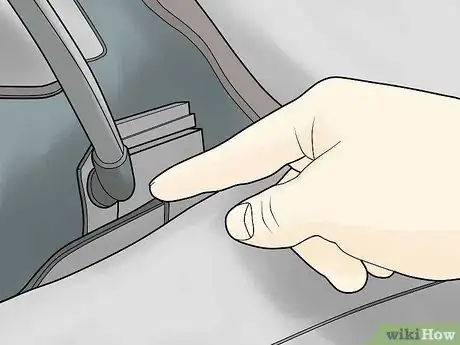

Blast compressed air through the drain tubes located at the base of the sunroof seal.^{[2]
X
Research source} These tubes are designed to carry water that gets through the roof down and out of the car. Tubes can get blocked with dirt and debris over time and need cleaning.^{[3]
X
Research source}

Advertisement

Method 2

Method 2 of 3:
Cleaning Drains with Metal Wire

1

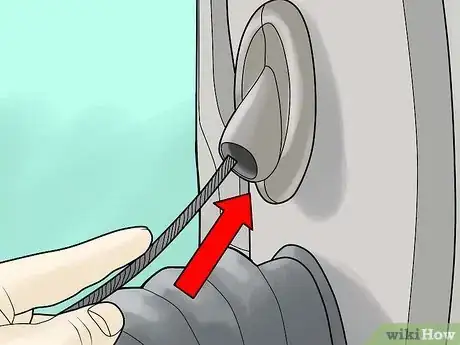

Insert a skinny flexible metal wire in a drain tube. A bicycle brake line works very well to clean sunroof drain tubes -- it is the perfect diameter and has just the right flex to make its way down through the tubes. Clean each drain hole you find near the sunroof base.^{[4]
X
Research source}
2

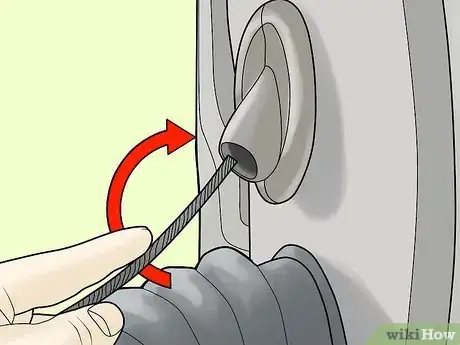

Twist the wire clockwise and then counterclockwise while pushing it deeper into the drain tube. The wire should move with little resistance through the tube and push any small dirt or debris particles out as it continues.^{[5]
X
Research source}
- Take care not to damage the drain tubes with the metal rod. If you feel a lot of resistance even after twisting the metal wire, do not push it any further. If this happens, you will need to have a professional clean the drain tubes.
3

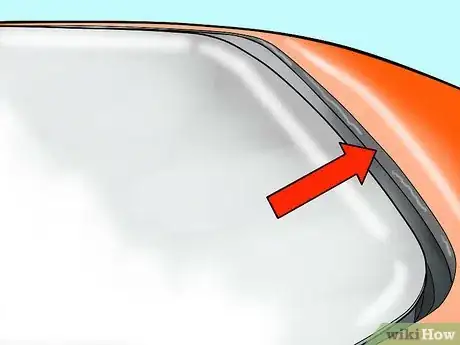

Close the sunroof and pour water over the glass.^{[6]
X
Research source} Check for leaks inside the car. If there are still leaks, proceed to the next step.

Advertisement

Method 3

Method 3 of 3:
Fixing the Seal

1

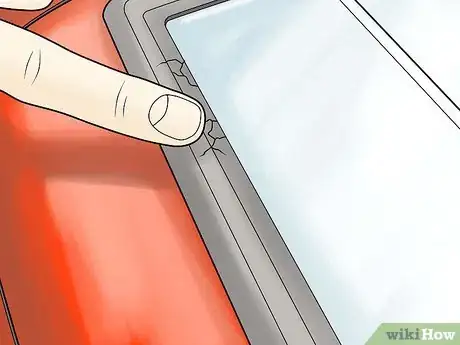

Look for cracks or jagged edges along the sunroof seal. Some seals will slowly dry out and crack over time due to exposure to extreme hot and cold temperatures.
2

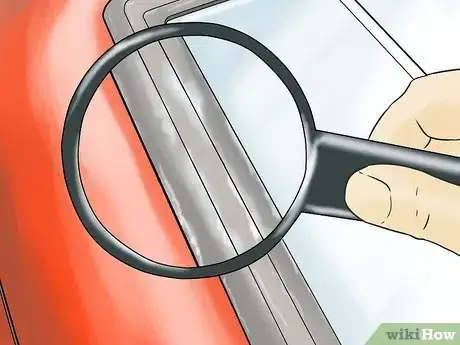

Scan the area around the seal for any pooling water or mold. Some seals will sag or lose their shape, causing water to build up in the seal's trough. When the water pools, it can eventually create holes in the seal.
3

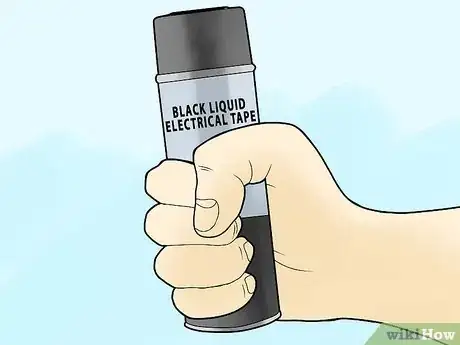

Apply black liquid electrical tape to the seal. Brush a thick layer of the liquid electrical tape on, making sure it covers cover any visible wear. The tape dries to form a protective, waterproof barrier. Press the tape down around the seal. Let it dry following the liquid tape manufacturer's directions.
4

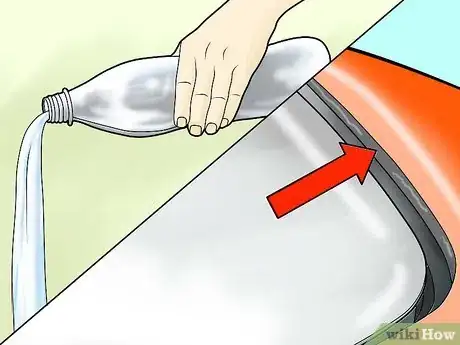

Close the sunroof and pour water over the top again. Check inside the car to see if you still have leaks.
5
Take the vehicle to a professional service provider if you continue to have problems with the sunroof. Leaks that are not associated with the drainage tubes or seals are usually factory flaws that can only be fixed by installing a new sunroof.

Advertisement

Community Q&A

Question

What seal can I use for a 2004 Lexus LX sunroof?

Community Answer

You should use a flex seal. It's an aerosol can spray that seals anything to make it completely waterproof, but it is still flexible.
Question

How do I seal a leaky sunroof?

Community Answer

It depends on the style of sunroof you have. Some have replaceable seals, while others need to have the glass replaced as the seal is non replaceable or not designed to be.
Question

Where are the drain tubes located on a 2004 Buick Rainier?

Community Answer

You can find the drain tube outlets inside the wheel wells on all 4 corners. There are 'nipples' that keep bugs and debris from entering the tubes and clogging them from the outside and they don't protrude very far out from the inside of the fender well. Up top, they are located in the rack with the front two being accessible with the roof open. Do not blow compressed air through these holes! The drain tubes are plastic until they meet up behind the dash to the rubber hose that runs out of the car. Compressed air can separate these lines and then you WILL have water inside your vehicle. Access to the connection is normally through pulling the dash apart to get at them in the front.
Question

I have a Buick Lucerne and it's constantly dripping water from my sunroof into my car. What is the problem?

Community Answer

Your weather lining on the sunroof is worn or cracked. Have it fixed as soon as possible.
Question

My drain tube keeps sliding out of the rubber boot at the sunroof, and I have tried several glue options. What will adhere to the tubing, which is very high in oil content?

Community Answer

Try using dual-wall heat shrink tubing to connect the two together. It will shrink when heated and hold them together.
Question

I have an '02 PT Cruiser with moon roof. One rainy morning, I got in the car and my dome light was filled with water! No water was on the seat or floor, except what was dripping from the dome light. An auto shop checked the sunroof drains. No clogs. They recommended taking it to the dealer. Opinions?

Community Answer

Take it to the dealer and ask their opinion. However, don't get the service done by them, take it to a different auto place and see if they recommend the same service (and will probably do so at a lower rate).
Question

What do I do if my sunroof is leaking around the edges due to rust? What's the best way to seal it permanently?

Drew Hawkins1

Community Answer

Try taping it off with masking tape and applying black silicon on top of the seal to keep it watertight. You won't be able to open your sunroof, but it will keep water from getting in.
Question

How do I find the source of the leak of my leaky sunroof?

Drew Hawkins1

Community Answer

Check the drain holes and the drain tubes to see if they're clogged. Clean the tracks, openings, and tubes so water can properly drain through them.
Question

What do I do if my sunroof is sagging on one side in my vehicle? Is there a cheap fix for this?

Drew Hawkins1

Community Answer

It may be sagging because of pressure from water on top of it. Check your drain tubes to make sure they're clear and aren't holding water.
