Ram Pump

About this device
Keywords 3D printing, ram pump, hydraulics, hydram
Uses development, industry
Authors Nick Buday
Status prototype
Made? Yes
Replicated? No
Designed in United States
Affiliations MTU
MOST
Materials Plastic
Bottle
Glue
Cost USD $ 13.80
SDGs SDG06 Clean water and sanitation
SDG08 Decent work and economic growth
Instructions data
Manufacturing files https://www.youmagine.com/designs/777-osat-ram-pump
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

Ram Pump

Project developed by nkbuday (Nick Buday)

This Open Source Appropriate Technology has been designed but not yet tested — use at your own risk.
This Open Source Appropriate Technology has been prototyped.


Abstract

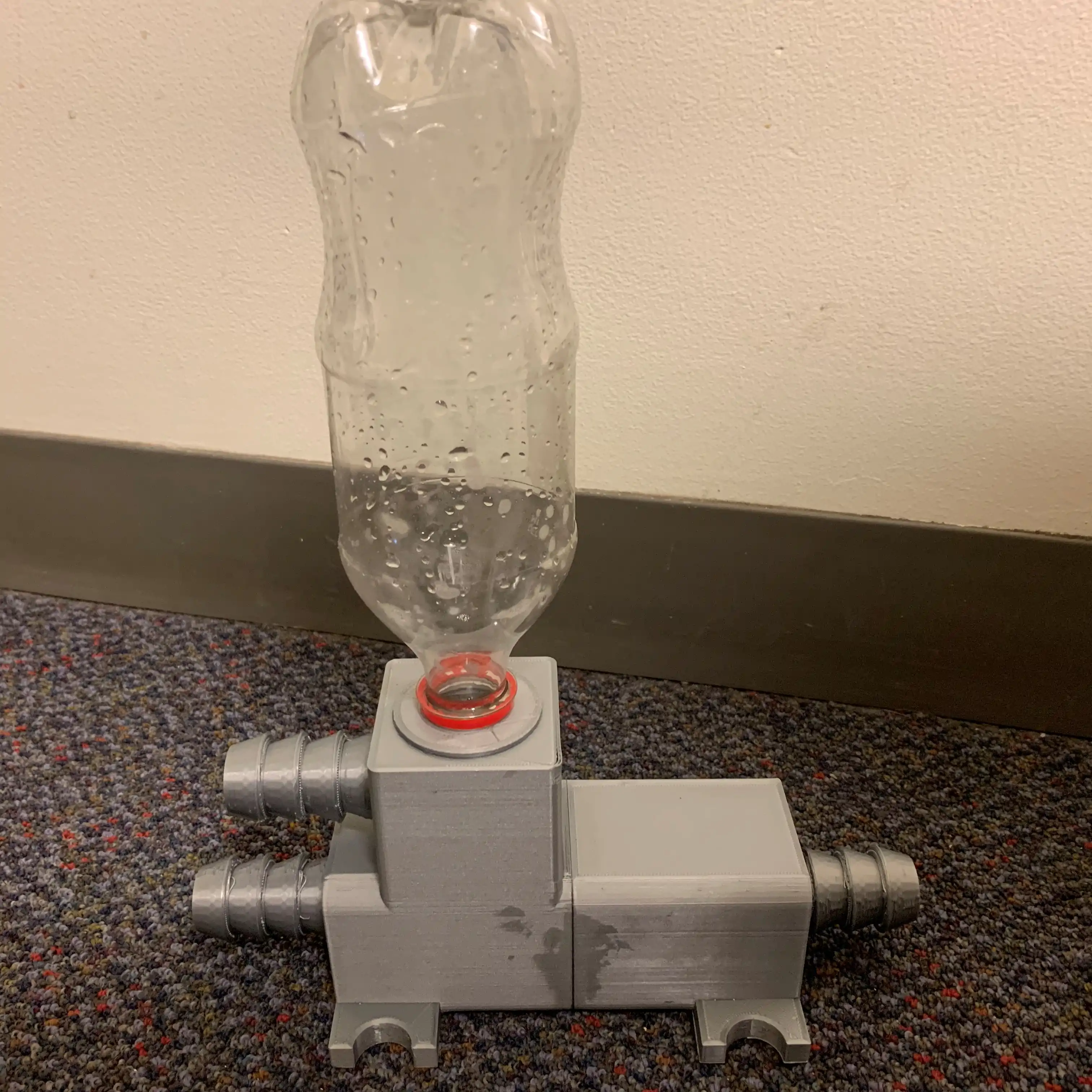

  1. This OSAT project is the design and prototyping of a hydraulic ram pump. This pump features no motorized parts and can be left unattended for extended duration with minimal upkeep. This pump is designed to allow someone in an area with hills with a water source far away. The ram pump does have a lot of waste water compared to how much it pumps, so it is ideal to place the waste outlet into a natural occurring water source.

Bill of Materials

  1. Standard Pop Bottle (~$2 USD)
  2. Super Glue (~$5 USD)
  3. Knife or cutting edge to clean up print if need be
  4. 3D Printed Parts
    1. [Link to FreeCad file and STLs]


Tools needed for fabrication of the OSAT

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Knife

Skills and Knowledge Necessary to Make the OSAT

Technical Specifications and Assembly Instructions

  1. [[[Media:Ram_Pump_Assembly.pdf|Ram Pump Assembly]]]
  2. Print time ~~18 hours
  3. Assembly time ~~30 min

Common Problems and Solutions

  • To avoid trouble with assembly, use the knife to smooth the parts till they fit "snug".
  • Highly recommended to print the adapters and restrictions at layer height of 0.3 mm
  • Highly recommended to print the pump bodies at layer height of 0.2 mm
  • Highly recommended to print the threads at layer height of 0.1 mm
  • When using super glue, be careful not to overdue it. Too much glue can clog areas of the pump. Just keep a towel or rag handy to wipe excess glue in some areas.
  • If the pump is struggling to pump water, make sure the source for the inlet is significantly higher than the pump (at least 1 meter)

Cost savings

  1. Material Costs total ~~$13.8 USD
    • Printinf cost ~~$6.8 USD
    • Resources cost ~~$7 USD
  2. Commercial 1" Ram Pump ~~$165 USD
  3. Savings
    • ~~$151.2 USD in savings
    • ~~ 91% in savings

Benefited Internet Communities

  • Engineers Without Borders
  • The Water Project
  • Water For People
  • Solea Water
  • WaterAid
